GT13HD Heavy Duty Trailer

Trailers / Enclosed drop deck trailer / Steel Post Series

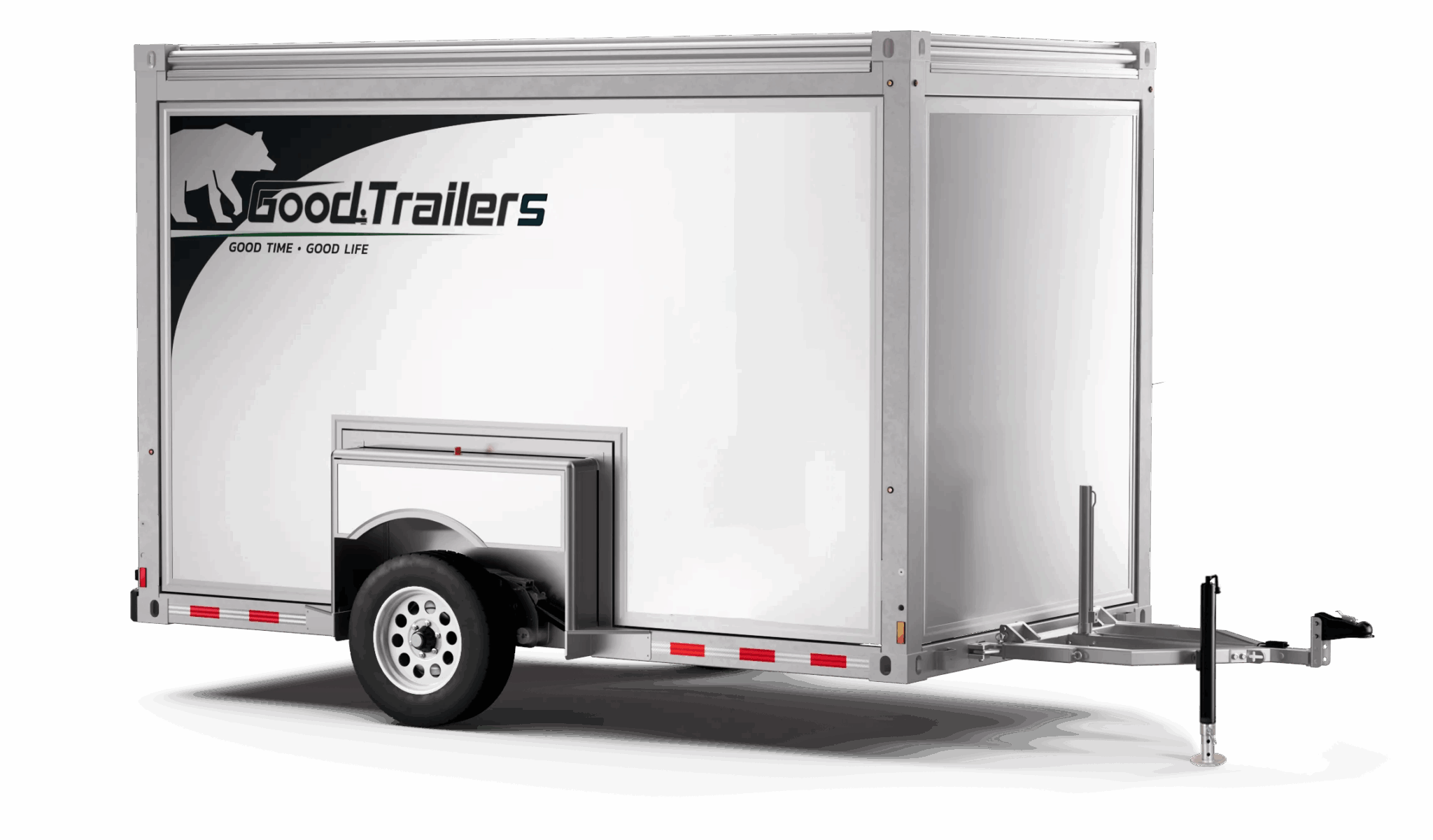

GT13HD Heavy Duty Trailer

This 13-foot heavy duty cargo trailer is a rugged little workhorse ready to haul your gear over the roughest roads. Plus, it’s equipped with a smooth, sleek hydraulic drop deck system that brings the entire rig flat to the ground. Now loading and unloading is easier than ever!

Find Your Dealer Become a Dealer

Specs

Precision Specs. Proven Performance.

18'L x 8'6''W x 8'6''H

Exterior Dimensions

12'6''L x 6'10''W x 7’10''H

Interior Dimensions

85.42 ft²

Square Footage

74.4’‘W x 85.1''H

Rear Door Opening

5.4″

Lowered Height

18″

Raised Height

3,532 lbs

Est. Curb/Dry Weight

3,468 lbs

Est. Carry Capacity

7,000 lbs

GVWR

2-5/16″

Ball Size

14,000 lbs

Coupler Rating

Axle Quantity

7,000 lbs

Axle Rating

235/80R16

Tire Size

LED

Trailer Lighting

360° LED

Interior Lighting

Overview

Standard Features

Rough & tough for rural roads. Built on steel posts and a galvanized steel chassis that makes it rugged and ready for anything.

Powerful ground level loading. Lower the deck in less than a minute. Gently roll dollies or hand trucks into and out of the trailer.

Gentle ramp angle. Get from the ground to the deck on an 11°, 22", 75" wide ramp that makes moving from the ground to the deck as gentle as moving from the sidewalk to the street while using a curb cut.

Bright, clean interior. See your work area while you load and unload. Soft, bright, 360° interior lighting lets you see every piece of equipment you bring on board.

Stay comfortable. Built with patent-pending composite aluminum panels that deliver built-in insulation that helps to smooth out temperature extremes. Loading, unloading, or even spending time inside your trailer is now a more pleasant, comfortable experience.
