Good Manufacturing, Inc.

GT13HDX High Cube Trailer

Conquer any challenge with effortless loading and commanding capacity. This 13-foot heavy-duty high cube trailer takes your gear over the roughest roads, then brings your entire setup flat to ground with smooth hydraulic precision. Now, load oversized items with ease while maximizing every inch of the extra vertical space.

Last updated:

Specs

Precision Specs. Proven Performance.

Exterior Dimensions
18'L x 8'6''W x 9'4''H
Interior Dimensions
12'6''L x6'10''W x 8'6''H
Square Footage
85.42 ft²
Rear Door Opening
74.4''W x 95''H
Lowered Height
5.4″
Raised Height
18″
Est. Curb/Dry Weight
3,532 lbs
Est. Carry Capacity
3,468 lbs
GVWR
7,000 lbs
Ball Size
2-5/16″
Coupler Rating
14,000 lbs
Axle Quantity
1
Axle Rating
7,000 lbs
Tire Size
235/80R16
Trailer Lighting
LED
Interior Lighting
360° LED

Overview

Standard Features

Loading and unloading: easier than ever. A smooth, sleek, hydraulic drop deck system brings the entire rig flat to the ground at the touch of a button. Stop struggling up high-angle ramps. Walk right inside with your gear instead.


Load taller cargo. With extra interior height, this high cube trailer offers unparalleled vertical space. Accommodate taller equipment, stacked pallets, or oversized items traditional trailers can't handle.


Lighting helps you load and work safely and effectively. 360° interior LED lighting lets you illuminate the entire work area at the touch of a button.


Comfortable inside. Tired of boiling during the summer months and freezing during the winter? Patent-pending composite aluminum panels provide superior insulation.


Rugged and road ready. The galvanized steel chassis and frame ensures this heavy-duty trailer can travel virtually anywhere. It's resistant to damage and is designed to serve you for years.

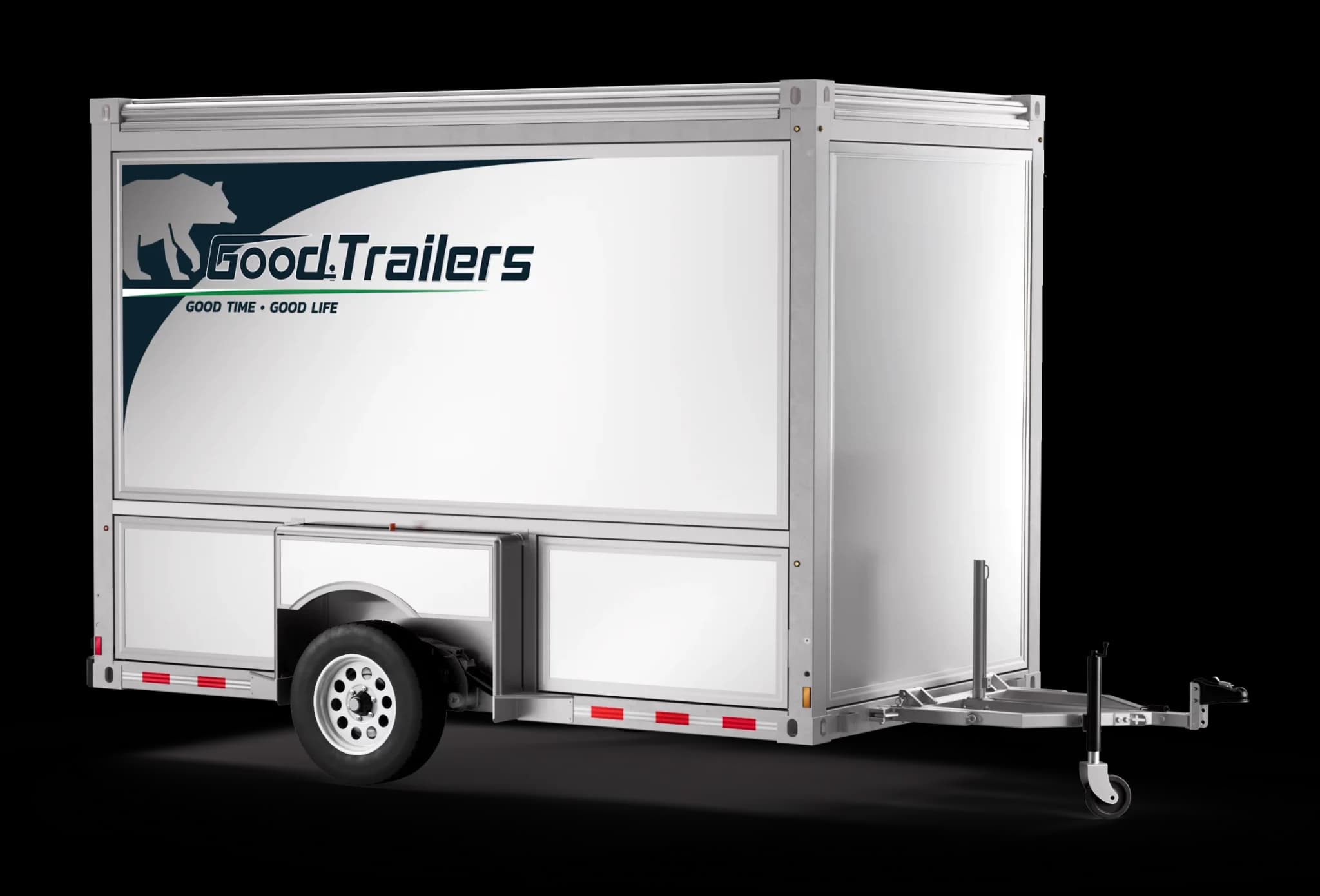

One of our 13-ft Extended Height Cargo Trailers
