Utility Trailers for Parks and Recreation Departments

If you’re searching for utility trailers for Parks and Recreation Departments, you already know you need a traile that can handle more than one job.

The same department may be moving a commercial mower in the morning, hauling trail-maintenance equipment after lunch, and setting up barricades, signs, tables, or other event gear for a community festival that evening.

For many departments, a hydraulic drop deck can add useful flexibility. Instead of sending equipment up to normal towing height, the trailer lowers until the chassis rests on the ground, bringing the deck to just 5.4″. A short, wide, 22″ ramp provides the remaining 11° transition.

Here’s what you should consider when choosing a utility trailer.

One Trailer, Many Municipal Jobs

A Parks & Recreation trailer may need to support several very different types of work.

Depending on the department, that can include:

Commercial zero-turn mowers
UTVs and golf carts
Compact sweepers & turf care equipment
Landscaping and trail-maintenance tools
Irrigation repair supplies
Trash & clean-up equipment
Traffic cones, temporary signs, and barricades
Sports field supplies
Tables, carts, & event equipment
And other municipal gear.

So, start by evaluating the work your department actually performs, then choose a trailer around those jobs.

Farm Utility Trailer for Zero-Turn Mowers — *Pictured: GT13FL lowered to ground level, with zero-turn mower.*

Ground-Level Loading for Grounds Equipment

Commercial mowers, UTVs, compact tractors, sweepers, and similar equipment all have to make the transition from the ground to the trailer deck.

On the GoodMFG® GT13FL and GT19FL, the deck rides at approximately 18 inches during transport. When it’s time to load, the hydraulic system lowers the trailer until the chassis rests on the ground and the deck sits 5.4 inches above the surface.

A 22″ long, 76.5″ wide spring-assisted folding ramp with an 11° approach handles the remaining transition.

That gives Parks & Recreation crews a short, low-angle approach instead of requiring equipment to climb to normal towing height.

It also means the rear ramp stays attached to the trailer. Crews are not repeatedly positioning and retrieving a separate set of long loading ramps when moving equipment from site to site.

That can be particularly useful for departments that make several equipment moves during a normal workday.

A Better Fit for Low-Clearance Equipment

Some turf-care and grounds-maintenance machines have relatively little clearance underneath them.

With any trailer, the important question isn’t simply whether the machine can climb the ramp. You also have to consider what happens where the ramp meets the deck.

A steep transition can create a more pronounced breakover point for long or low-clearance equipment.

Because a GoodMFG® flatbed remains level while lowered and uses a short 11° rear ramp, the ramp-to-deck transition is relatively gentle.

For compatible equipment, that can help reduce the chance of scraping or high-centering.

That does not mean every mower, sweeper, cart, or tractor will automatically fit or clear the trailer. Departments should compare:

Machine weight
Total transport length & width
Ground clearance
Attachments
Manufacturer loading instructions
The trailer’s deck dimensions and carrying capacity

The equipment determines whether the trailer is a fit.

Event Setup & Public Safety Equipment

Parks departments do a lot more than maintain grass and trails, so when choosing utility trailers for Parks and Recreation departments, you may need trailers that are capable of supporting:

Parades
Community festivals
Farmers’ markets
Races
Sports tournaments
Seasonal events
Temporary road & parking closures
And other gatherings on public property.

Barricades, portable signs, cones, carts, crowd-control equipment, tables, and other event materials may need to be moved to a site, unloaded, staged, then collected again when the event is over.

GoodMFG® has already built a trailer for exactly that kind of municipal workflow.

City of Arlington: A Parks & Events-Type Use Case

The City of Arlington asked GoodMFG° to modify a standard 19-foot drop-deck flatbed by adding 36″ sidewalls.

The city uses the trailer to transport, among other things, Meridian Rapid Defense Group vehicle barriers to parades and other events.

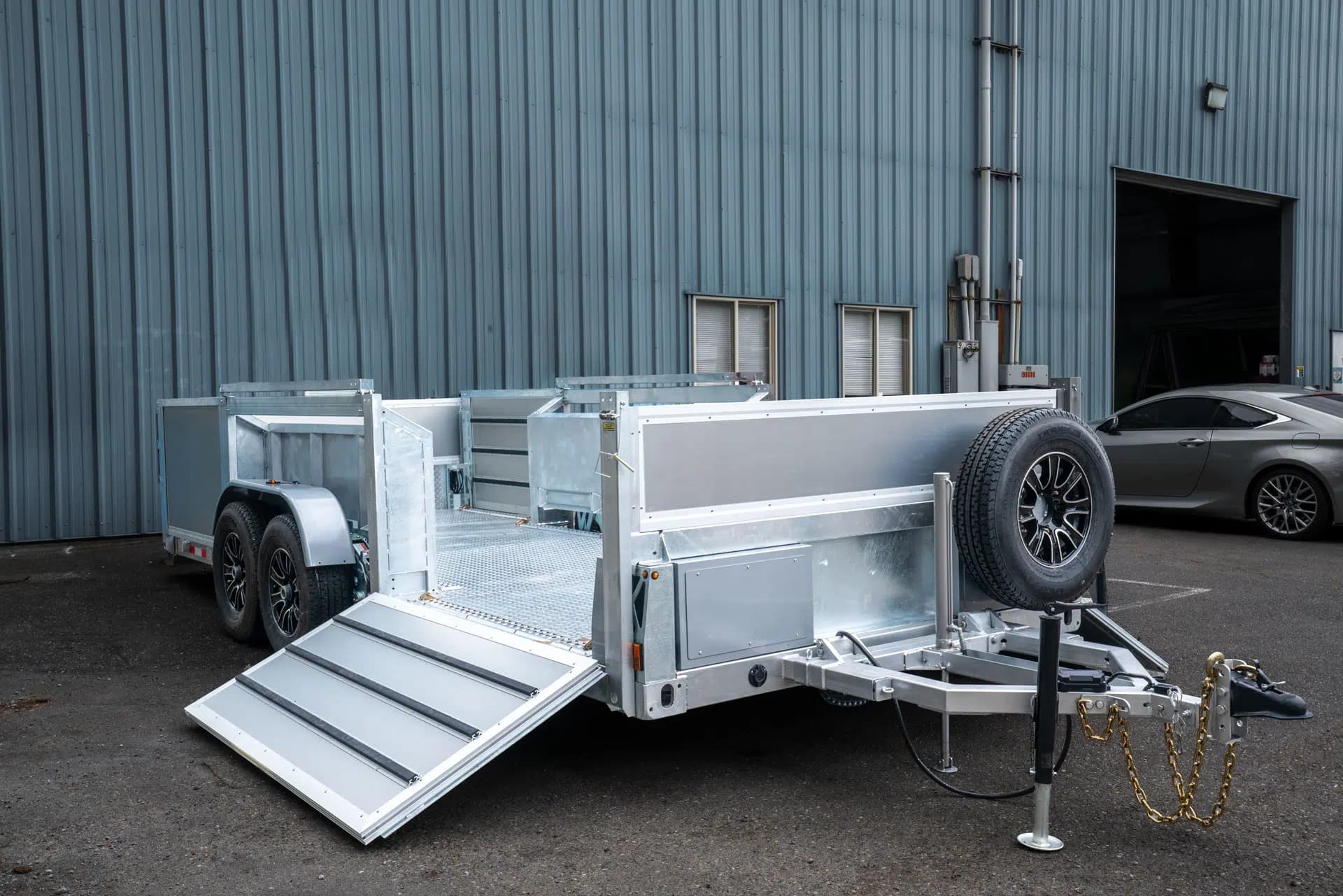

Drop Deck Trailers Buyers Guide City of Arlington Trailer Customization with Sidewalls — *GT19FL with sidewalls* *and side-mounted entry ramp.*

If your Parks & Recreation Department needs similar customization, don’t hesitate to reach out.

Flatbed or Enclosed? How to Choose

The primary work involves machinery or bulky equipment that benefits from open access.

Examples might include:

Commercial mowers
UTVs
Compact grounds equipment
Sweepers
Barricades
Pallets
Event gear
Awkward items that are easier to reach from the sides.

We currently offer two flatbed sizes.

Specification	GT13FL	GT19FL
Usable deck	11′8″ × 6′10″	17′9″ × 6′10″
Est. carrying capacity	5,055 lbs	8,000 lbs
GVWR	7,000 lbs	11,800 lbs
Lowered deck height	5.4″	5.4″
Rear ramp	22″ / 11°	22″ / 11°
Ramp width	76.5″	76.5″

Choose an enclosed trailer when:

The department routinely carries smaller tools, supplies, or equipment that benefits from protection from direct rain, road spray, and debris.

Examples might include:

Hand & power tools
Repair supplies
Batteries & chargers
Event electronics
Signage
Maintenance equipment
Sports field supplies

An enclosed trailer brings an added benefit: lockable storage space while working in public areas. That doesn’t make the trailer theft-proof, but it lets crews close it up and lock down equipment rather than leaving their tools exposed while they work.

The GT13AL provides 3,975 pounds of estimated carrying capacity paired with a 12’6″ x 6’10” interior. The GT19AL provides 7,929 pounds with an 18’7″ x 6’10” interior.

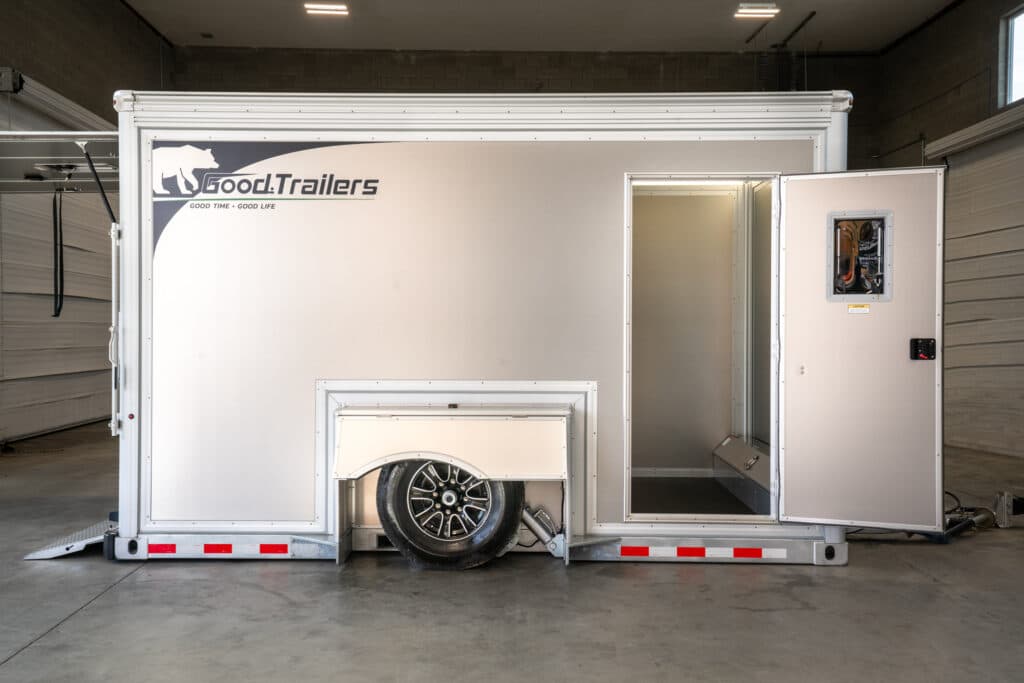

GT13AL 13' Enclosed Drop Deck Trailer at Ground Level — *Pictured: GT13AL with side man door, open, lift panel door, open, at ground-level. These enclosed drop deck trailers can make excellent utility trailers for Parks and Recreation departments.*

Working Around the Public

Parks crews often work in places that never really become closed jobsites.

Dog walkers are going past. Kids are heading toward the playground. A sports complex may have hundreds of people moving between fields. Event attendees may be walking around equipment staging areas.

That makes organization particularly valuable.

An enclosed trailer can give crews a central place to store tools and supplies when they’re not being used.

A flatbed can make bulky equipment accessible without forcing crews to unload unrelated items first.

And because the trailer chassis rests on the ground while lowered, crews can work around a low loading surface during loading and unloading rather than repeatedly climbing to towing height.

None of those features replaces ordinary site control, safe work procedures, cargo securement, or keeping the public clear of operating equipment.

They simply give the department a trailer layout that can fit the way public-space work is actually performed.

FAQ

Can GoodMFG® customize a trailer for a municipal department?

While some municipal departments find our basic trailer line-up meets their needs without alteration, we are often able to accommodate customization requests. Contact us to see if we can design a strong solution to your problem!

Do hydraulic drop deck trailers prevent equipment from scraping?

No trailer can guarantee that every piece of equipment will get through every loading transition without incident. There are too many variables at play, including operator skill.

However, drive-on loading at ground level tends to reduce the amount of damage a piece of equipment risks sustaining at load-in and load-out by a considerable margin.

Key Takeaways

Here’s the TL;DR on choosing utility trailers for Parks and Recreation departments.

Parks & Recreation trailers need to do more than one job. Grounds maintenance, trail work, sports facilities, events, and public-space operations can all create different hauling requirements.
Ground-level loading reduces the climb. GoodMFG® flatbeds lower until the chassis rests on the ground, bringing the deck to 5.4 inches with a short 11° rear transition.
Municipal trailers can support event logistics too. The City of Arlington uses a customized GoodMFG® flatbed with 36-inch sidewalls to move vehicle barriers to parades and other events.
Payload is only part of fit. Dimensions, attachments, load distribution, securement, loading conditions, and the complete workflow all matter.
